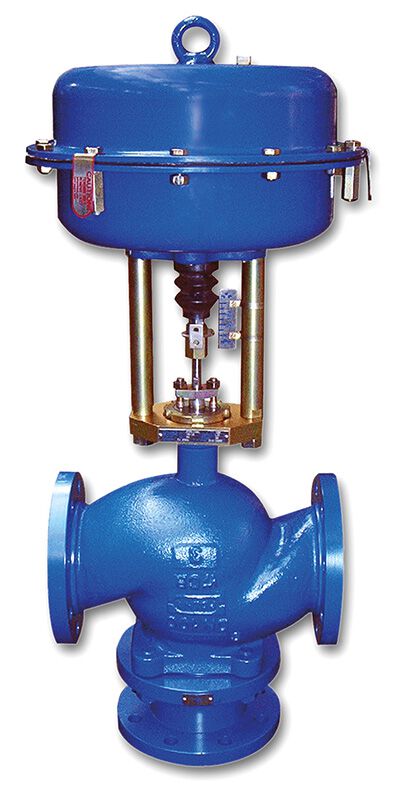

3-way valve BR 13

The 3-way control valve BR 13 is used to mix (BR 13 M) or divide (BR 13R) media streams. It can be used in a broad range of industry sectors.

Features
Nominal sizes: DN 15; 20; 25; 32; 40; 50; 65; 80; 100; 150 (DN 200 and higher after technical clarification)
Nominal pressure: PN10 - PN40 or ANSI CL150 bis CL300
Leakage classes (according to DIN EN 60534-4): IV (< 0,01% Kvs); VI (bubble-tight)
Face to face DIN EN 60534-3-1 or ANSI B16.10
Temperature range: -196°C to +450°C
Configuration with flange or welding ends, TA-Luft, bellows seal bonnet possible
Can either be used as a mixing valve (BR 13M) or diverting valve (BR 13R)
SIL-certification
